Upgrading User Profile Choice Fields to SharePoint 2010
I’m working on an upgrade (database attach) for a client of mine and I ran into something somewhat unexpected with some User Profile properties – properties that used a choice field in 2007 (fields that allowed the administrator to define a list of values that the user could pick from) were migrated to Managed Term Store based fields when upgraded. At first glance this was pretty cool; the only problem was that, though the field was converted to a Managed Term Store based field (essentially a Taxonomy field), the Terms themselves were not migrated and the user-specific values were lost. Now, I may have done something wrong during the upgrade process and if someone knows what I did wrong please let me know – that said, I decided to just throw together a couple quick scripts that I could use to export the field information (along with the users’ values for those fields) and then import the information in the new Farm.
To accomplish this I created two separate scripts, one for the 2007 Farm and one for the new 2010 Farm. The 2007 script loops through all the User Profile properties and, if the property has choices defined then it creates an XML structure that defines the property name and the associated choices; I put this in a function called Get-SPChoiceProperties. It then loops through all User Profiles and, for each identified property, creates another XML structure which defines the property name and associated values along with the account name; I put this in a function called Get-SPUserProperties. I then merge these two XML structures to create a single structure which is saved to disk.
Here’s the complete code which I store in a file called Export-UserProfileProperties.ps1 (note that the function names and script name are not really important and the code is by no means perfect – I threw this whole thing together *very* quickly so that I could just get this task done and move on to the next task):
[System.Reflection.Assembly]::LoadWithPartialName("Microsoft.SharePoint") | Out-Null [System.Reflection.Assembly]::LoadWithPartialName("Microsoft.Office.Server") | Out-Null [System.Reflection.Assembly]::LoadWithPartialName("Microsoft.Office.Server.UserProfiles") | Out-Null function Get-SPChoiceProperties() { $context = [Microsoft.Office.Server.ServerContext]::Default $upm = New-Object Microsoft.Office.Server.UserProfiles.UserProfileConfigManager $context $props = $upm.GetProperties() [xml]$xml = "<Properties></Properties>" foreach ($prop in $props) { if ($prop.ChoiceList -eq $null) { continue } $propXml = $xml.CreateElement("Property") $xml.DocumentElement.AppendChild($propXml) | out-null $propXml.SetAttribute("Name", $prop.Name) $choicesXml = $xml.CreateElement("ChoiceList") $propXml.AppendChild($choicesXml) | out-null foreach ($choice in $Prop.ChoiceList.GetAllTerms($true)) { $choiceXml = $xml.CreateElement("Choice") $choicesXml.AppendChild($choiceXml) | out-null $choiceXml.InnerText = $choice } } $xml } function Get-SPUserProperties([string[]]$propertyNames) { $context = [Microsoft.Office.Server.ServerContext]::Default $upm = New-Object Microsoft.Office.Server.UserProfiles.UserProfileManager $context [xml]$xml = "<Users></Users>" foreach ($profile in $upm) { $userXml = $xml.CreateElement("User") $xml.DocumentElement.AppendChild($userXml) | out-null $userXml.SetAttribute("Account", $profile["AccountName"].Value) $propertyNames | % { $val = ($profile[$_] -as [string[]]) -join ";" $userXml.SetAttribute($_, $val) } } $xml } $propertyXml = Get-SPChoiceProperties [string[]]$properties = $propertyXml.Properties.Property | % {$_.Name} $userXml = Get-SPUserProperties $properties [xml]$xml = "<ProfileData>$($propertyXml.OuterXml)$($userXml.OuterXml)</ProfileData>" $xml.Save("c:\userdata.xml")
The next thing I needed to do was to create the script for the 2010 Farm. This script had three steps for which I created a separate function for each step:
- Create the Term Store Group if not present and, for each User Profile field identified in the exported XML create the Term Set and associated Terms. I store the field name and associated Term Set in a hash table that I can then use for the next steps. The function I created for this is called Create-SPProfileTermSets.
- For each User Profile property and associated Term Set returned by step 1, update the property with the new Term Set. The function I created for this is called Set-SPUserProfileProperties.
- Loop through all the users defined in the exported XML and, for each user, update the User Profile property with the appropriate Term value. The function I created for this is called Set-SPUserProfileValues.
I then load the exported XML and call these three functions in order, passing in the appropriate information as required. Here’s the completed code (again, it’s rough but it works – well, it met my needs):
function Create-SPProfileTermSets($session, [string]$groupName, [xml]$data) { $group = $session.DefaultSiteCollectionTermStore.Groups[$groupName] if ($group -eq $null) { $group = $ts.DefaultSiteCollectionTermStore.CreateGroup($groupName) $group.TermStore.CommitAll() } $termSets = @{} $data.ProfileData.Properties.Property | % { $name = $_.Name $termSet = $group.TermSets[$name] if ($termSet -eq $null) { $termSet = $group.CreateTermSet($name) } $termSets += @{$name=$termSet} $_.ChoiceList.Choice | % { $termValue = $_.Replace("&", "＆") $term = $termSet.Terms[$termValue] if ($term -eq $null) { Write-Host "Adding $termValue" $termSet.CreateTerm($termValue, 1033) | Out-Null } } $group.TermStore.CommitAll() } $termSets } function Set-SPUserProfileProperties($termSets) { $sa = Get-SPServiceApplication | ?{$_.TypeName -eq "User Profile Service Application"} $context = [Microsoft.SharePoint.SPServiceContext]::GetContext($sa.ServiceApplicationProxyGroup, [Microsoft.SharePoint.SPSiteSubscriptionIdentifier]::Default) $upm = New-Object Microsoft.Office.Server.UserProfiles.UserProfileConfigManager $context $properties = $upm.ProfilePropertyManager.GetCoreProperties() foreach ($key in $termSets.Keys) { $prop = $properties.GetPropertyByName($key) $prop.TermSet = $termSets[$key] $prop.Commit() } } function Set-SPUserProfileValues($termSets, [xml]$data) { $sa = Get-SPServiceApplication | ?{$_.TypeName -eq "User Profile Service Application"} $context = [Microsoft.SharePoint.SPServiceContext]::GetContext($sa.ServiceApplicationProxyGroup, [Microsoft.SharePoint.SPSiteSubscriptionIdentifier]::Default) $upm = New-Object Microsoft.Office.Server.UserProfiles.UserProfileManager $context $data.ProfileData.Users.User | % { if ($upm.UserExists($_.Account)) { $up = $upm.GetUserProfile($_.Account) Write-Host "Evaluating $($_.Account)..." foreach ($key in $termSets.Keys) { Write-Host " Setting $key..." $prop = $up[$key] $prop.Clear() [string[]]$term = $_.GetAttribute($key).Split(';') $term | % { if (![string]::IsNullOrEmpty($_)) { $prop.Add($termSets[$key].Terms[$_].Name) } } } $up.Commit() } } } $ts = New-Object Microsoft.SharePoint.Taxonomy.TaxonomySession (Get-SPSite "http://<ENTER YOUR SITE URL HERE>"),$true [xml]$xml = Get-Content C:\userdata.xml $termSets = Create-SPProfileTermSets $ts "Profile Properties" $xml Set-SPUserProfileProperties $termSets Set-SPUserProfileValues $termSets $xml
One note about the Taxonomy Session – notice that I don’t use the Get-SPTaxonomySession cmdlet – this is because I can’t stand how this cmdlet works; when you create a TaxonomySession object using the API you have the ability to force a reload from the database, thereby ignoring locally cached data, but when you use the cmdlet you don’t have this option. This can cause all kinds of issues when you are running scripts/functions like this repeatedly as what is cached may not reflect what is current and this will inevitably cause you headaches. (If you decide to use this code don’t forget to set the URL for the Taxonomy Session).
So that was my adventure for the day – as I said in the beginning, if there’s a way to do the upgrade that negates the need to do any of this please let me know; otherwise, perhaps others will benefit from today’s upgrade headaches
.
Importing Profile Properties
The project that I'm currently on has a test environment in which many configurations were made to the user profile properties settings. I just began the process of building out their production environment and was faced with a minor issue - how do I get all the settings that have been applied to the test environments profile properties migrated to the production environment in a reliable and repeatable way? I took a look around and remembered that I already had a command to dump out the profile property settings into an XML file - gl-enumprofileproperties - so now I just needed another command that could take the output from my previous command and use it to import those settings into another farm.

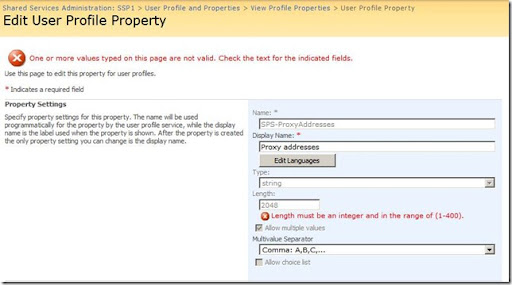

Fortunately this turned out to be very easy (with one minor caveat). I called this new command gl-importprofileproperties. First lets take a look at a sample of the output generated by the gl-enumprofileproperties command:
<Properties>
<Property>
<Name>UserProfile_GUID</Name>
<AllowPolicyOverride>False</AllowPolicyOverride>
<ChoiceList />
<ChoiceType>Off</ChoiceType>
<DefaultPrivacy>Public</DefaultPrivacy>
<Description />
<DisplayName>Id</DisplayName>
<DisplayOrder>1</DisplayOrder>
<IsAdminEditable>False</IsAdminEditable>
<IsAlias>False</IsAlias>
<IsColleagueEventLog>False</IsColleagueEventLog>
<IsImported>False</IsImported>
<IsMultivalued>False</IsMultivalued>
<IsReplicable>False</IsReplicable>
<IsRequired>True</IsRequired>
<IsSearchable>True</IsSearchable>
<IsSection>False</IsSection>
<IsSystem>True</IsSystem>
<IsUpgrade>False</IsUpgrade>
<IsUpgradePrivate>False</IsUpgradePrivate>
<IsUserEditable>False</IsUserEditable>
<IsVisibleOnEditor>False</IsVisibleOnEditor>
<IsVisibleOnViewer>False</IsVisibleOnViewer>
<Length>0</Length>
<ManagedPropertyName>UserProfile_GUID</ManagedPropertyName>
<MaximumShown>10</MaximumShown>
<PrivacyPolicy>Mandatory</PrivacyPolicy>
<Separator>Unknown</Separator>
<Type>unique identifier</Type>
<URI>urn:schemas-microsoft-com:sharepoint:portal:profile:UserProfile_GUID</URI>
<UserOverridePrivacy>False</UserOverridePrivacy>
<ImportMapping />
</Property>
<Property>
<Name>SID</Name>
<AllowPolicyOverride>False</AllowPolicyOverride>
<ChoiceList />
<ChoiceType>Off</ChoiceType>
<DefaultPrivacy>Public</DefaultPrivacy>
<Description />
<DisplayName>SID</DisplayName>
<DisplayOrder>2</DisplayOrder>
<IsAdminEditable>False</IsAdminEditable>
<IsAlias>False</IsAlias>
<IsColleagueEventLog>False</IsColleagueEventLog>
<IsImported>True</IsImported>
<IsMultivalued>False</IsMultivalued>
<IsReplicable>False</IsReplicable>
<IsRequired>False</IsRequired>
<IsSearchable>False</IsSearchable>
<IsSection>False</IsSection>
<IsSystem>True</IsSystem>
<IsUpgrade>False</IsUpgrade>
<IsUpgradePrivate>False</IsUpgradePrivate>
<IsUserEditable>False</IsUserEditable>
<IsVisibleOnEditor>False</IsVisibleOnEditor>
<IsVisibleOnViewer>False</IsVisibleOnViewer>
<Length>512</Length>
<ManagedPropertyName>SID</ManagedPropertyName>
<MaximumShown>10</MaximumShown>
<PrivacyPolicy>OptIn</PrivacyPolicy>
<Separator>Unknown</Separator>
<Type>binary</Type>
<URI>urn:schemas-microsoft-com:sharepoint:portal:profile:SID</URI>
<UserOverridePrivacy>False</UserOverridePrivacy>
<ImportMapping>
<DSPropName>objectSID</DSPropName>
<ConnectionName />
<AssociationName />
</ImportMapping>
</Property>
...
</Properties>
As you can see from the above XML there's really not much to - it's just a dump of all the properties (including read-only properties) that are found on the Microsoft.Office.Server.UserProfiles.Property object. So, importing these settings back in is a simple matter of looping through the Property XML elements shown above, finding the right Property object, and then set each property value. Here's the core code that accomplishes this:
1: /// <summary>
2: /// Imports the user profile properties using the provided input file.
3: /// </summary>
4: /// <param name="sspName">Name of the SSP.</param>
5: /// <param name="input">The input.</param>
6: /// <param name="removeMissing">if set to <c>true</c> [remove missing].</param>
7: public static void Import(string sspName, string input, bool removeMissing)
8: {
9: ServerContext serverContext;
10: if (string.IsNullOrEmpty(sspName))
11: serverContext = ServerContext.Default;
12: else
13: serverContext = ServerContext.GetContext(sspName);
14:
15: UserProfileConfigManager manager = new UserProfileConfigManager(serverContext);
16: PropertyCollection properties = manager.GetProperties();
17:
18: XmlDocument xmlDoc = new XmlDocument();
19: xmlDoc.Load(input);
20:
21: Log("Import started at {0}", DateTime.Now.ToString());
22:
23: try
24: {
25: bool displayOrderChanged = false;
26: foreach (XmlElement propElement in xmlDoc.SelectNodes("//Property"))
27: {
28: string propName = propElement.SelectSingleNode("Name").InnerText;
29: Property prop = properties.GetPropertyByName(propName);
30: bool isNew = false;
31: if (prop == null)
32: {
33: Log("Progress: Creating property '{0}'.", propName);
34: // We couldn't find a matching property so go ahead and create it
35: prop = properties.Create(bool.Parse(propElement.SelectSingleNode("IsSection").InnerText));
36: prop.Name = propName;
37: isNew = true;
38: SetProperties(prop, propElement, isNew, manager);
39: properties.Add(prop);
40: }
41: Log("Progress: Setting properties for '{0}'.", propName);
42: try
43: {
44: if (!isNew)
45: SetProperties(prop, propElement, isNew, manager);
46: prop.Commit();
47:
48: SetDataMapping(propElement, prop, manager);
49:
50: Log("Progress: Property '{0}' imported.", propName);
51: }
52: catch (Exception ex)
53: {
54: Log("ERROR: {0}\r\n{1}", EventLogEntryType.Error, ex.Message, ex.StackTrace);
55: }
56: }
57:
58: if (removeMissing)
59: {
60: Log("Progress: Removing properties not included in the import...");
61: PropertyCollection workColl = manager.GetProperties();
62: foreach (Property prop in properties)
63: {
64: if (xmlDoc.SelectSingleNode(string.Format("//Property[Name='{0}']", prop.Name)) == null)
65: {
66: Log("Progress: Removing property '{0}'.", prop.Name);
67: workColl.RemovePropertyByName(prop.Name);
68: }
69: }
70: }
71:
72: Log("Progress: Setting display order...");
73: properties = manager.GetProperties();
74: foreach (XmlElement propElement in xmlDoc.SelectNodes("//Property"))
75: {
76: string propName = propElement.SelectSingleNode("Name").InnerText;
77: Property prop = properties.GetPropertyByName(propName);
78:
79: if (!string.IsNullOrEmpty(propElement.SelectSingleNode("DisplayOrder").InnerText))
80: {
81: int displayOrder = int.Parse(propElement.SelectSingleNode("DisplayOrder").InnerText);
82: if (displayOrder != prop.DisplayOrder)
83: {
84: Log("Progress: Setting display order for '{0}' to '{1}'.", prop.Name, displayOrder.ToString());
85: properties.SetDisplayOrderByPropertyName(prop.Name, displayOrder);
86: displayOrderChanged = true;
87: }
88: }
89:
90: }
91: if (displayOrderChanged)
92: {
93: Log("Progress: Committing display order.");
94: properties.CommitDisplayOrder();
95: }
96: }
97: catch (Exception ex)
98: {
99: Log("ERROR: {0}\r\n{1}", EventLogEntryType.Error, ex.Message, ex.StackTrace);
100: }
101: finally
102: {
103: Log("Import finished at {0}", DateTime.Now.ToString());
104: }
105: }
106:
107: /// <summary>
108: /// Sets the properties.
109: /// </summary>
110: /// <param name="prop">The prop.</param>
111: /// <param name="propXml">The prop XML.</param>
112: /// <param name="isNew">if set to <c>true</c> [is new].</param>
113: /// <param name="manager">The manager.</param>
114: private static void SetProperties(Property prop, XmlElement propXml, bool isNew, UserProfileConfigManager manager)
115: {
116: string displayName = propXml.SelectSingleNode("DisplayName").InnerText;
117: if (isNew)
118: {
119: prop.DisplayName = displayName;
120:
121: bool isMultivalued = bool.Parse(propXml.SelectSingleNode("IsMultivalued").InnerText);
122: if (isMultivalued != prop.IsMultivalued)
123: prop.IsMultivalued = isMultivalued;
124:
125: int length = int.Parse(propXml.SelectSingleNode("Length").InnerText);
126: if (prop.Length != length)
127: prop.Length = length;
128:
129: string type = propXml.SelectSingleNode("Type").InnerText;
130: if (type != prop.Type)
131: prop.Type = type;
132: }
133:
134: //prop.AllowPolicyOverride = bool.Parse(propXml.SelectSingleNode("AllowPolicyOverride").InnerText);
135: //prop.DisplayOrder = propXml.SelectSingleNode("DisplayOrder").InnerText;
136: //prop.IsAdminEditable = bool.Parse(propXml.SelectSingleNode("IsAdminEditable").InnerText);
137: //prop.IsImported = bool.Parse(propXml.SelectSingleNode("IsImported").InnerText);
138: //prop.IsRequired = bool.Parse(propXml.SelectSingleNode("IsRequired").InnerText);
139: //prop.IsSection = bool.Parse(propXml.SelectSingleNode("IsSection").InnerText);
140: //prop.ManagedPropertyName = propXml.SelectSingleNode("ManagedPropertyName").InnerText;
141: //prop.URI = propXml.SelectSingleNode("URI").InnerText;
142:
143: if (displayName != prop.DisplayName)
144: prop.DisplayName = displayName;
145:
146: Privacy defaultPrivacy = (Privacy) Enum.Parse(typeof (Privacy), propXml.SelectSingleNode("DefaultPrivacy").InnerText, true);
147: if (defaultPrivacy != prop.DefaultPrivacy)
148: prop.DefaultPrivacy = defaultPrivacy;
149:
150: string desc = propXml.SelectSingleNode("Description").InnerText;
151: if (desc != prop.Description)
152: prop.Description = desc;
153:
154: bool isAlias = bool.Parse(propXml.SelectSingleNode("IsAlias").InnerText);
155: if (isAlias != prop.IsAlias)
156: prop.IsAlias = isAlias;
157:
158: bool isColleagueEventLog = bool.Parse(propXml.SelectSingleNode("IsColleagueEventLog").InnerText);
159: if (isColleagueEventLog != prop.IsColleagueEventLog)
160: prop.IsColleagueEventLog = isColleagueEventLog;
161:
162: bool isReplicable = bool.Parse(propXml.SelectSingleNode("IsReplicable").InnerText);
163: if (isReplicable != prop.IsReplicable)
164: prop.IsReplicable = isReplicable;
165:
166: bool isSearchable = bool.Parse(propXml.SelectSingleNode("IsSearchable").InnerText);
167: if (isSearchable != prop.IsSearchable)
168: prop.IsSearchable = isSearchable;
169:
170: bool isUpgrade = bool.Parse(propXml.SelectSingleNode("IsUpgrade").InnerText);
171: if (isUpgrade != prop.IsUpgrade)
172: prop.IsUpgrade = isUpgrade;
173:
174: bool isUpgradePrivate = bool.Parse(propXml.SelectSingleNode("IsUpgradePrivate").InnerText);
175: if (isUpgradePrivate != prop.IsUpgradePrivate)
176: prop.IsUpgradePrivate = isUpgradePrivate;
177:
178: bool isUserEditable = bool.Parse(propXml.SelectSingleNode("IsUserEditable").InnerText);
179: if (isUserEditable != prop.IsUserEditable)
180: prop.IsUserEditable = isUserEditable;
181:
182: bool isVisibleOnEditor = bool.Parse(propXml.SelectSingleNode("IsVisibleOnEditor").InnerText);
183: if (isVisibleOnEditor != prop.IsVisibleOnEditor)
184: prop.IsVisibleOnEditor = isVisibleOnEditor;
185:
186: bool isVisibleOnViewer = bool.Parse(propXml.SelectSingleNode("IsVisibleOnViewer").InnerText);
187: if (isVisibleOnViewer != prop.IsVisibleOnViewer)
188: prop.IsVisibleOnViewer = isVisibleOnViewer;
189:
190: int maxShown = int.Parse(propXml.SelectSingleNode("MaximumShown").InnerText);
191: if (maxShown != prop.MaximumShown)
192: prop.MaximumShown = maxShown;
193:
194: PrivacyPolicy privacyPolicy = (PrivacyPolicy)Enum.Parse(typeof(PrivacyPolicy), propXml.SelectSingleNode("PrivacyPolicy").InnerText, true);
195: if (privacyPolicy != prop.PrivacyPolicy)
196: prop.PrivacyPolicy = privacyPolicy;
197:
198: MultiValueSeparator separator = (MultiValueSeparator)Enum.Parse(typeof(MultiValueSeparator), propXml.SelectSingleNode("Separator").InnerText, true);
199: if (separator != prop.Separator)
200: prop.Separator = separator;
201:
202: bool userOverridePrivacy = bool.Parse(propXml.SelectSingleNode("UserOverridePrivacy").InnerText);
203: if (userOverridePrivacy != prop.UserOverridePrivacy)
204: prop.UserOverridePrivacy = userOverridePrivacy;
205:
206: ChoiceTypes choiceType = (ChoiceTypes)Enum.Parse(typeof(ChoiceTypes), propXml.SelectSingleNode("ChoiceType").InnerText, true);
207: if (choiceType != prop.ChoiceType)
208: prop.ChoiceType = choiceType;
209:
210:
211: foreach (XmlElement choiceXml in propXml.SelectNodes("ChoiceList/Choice"))
212: {
213: if (prop.ChoiceList.FindTerms(choiceXml.InnerText, ChoiceListSearchOption.ExactMatch).Length == 0)
214: {
215: prop.ChoiceList.Add(choiceXml.InnerText);
216: // Settng choice list values doesn't mark the property as dirty so we have to manually mark it using reflection.
217: Utilities.SetFieldValue(prop, typeof(Property), "m_fIsChanged", true);
218: }
219: }
220: }
221:
222: /// <summary>
223: /// Sets the data mapping.
224: /// </summary>
225: /// <param name="propXml">The prop XML.</param>
226: /// <param name="prop">The prop.</param>
227: /// <param name="manager">The manager.</param>
228: private static void SetDataMapping(XmlElement propXml, Property prop, UserProfileConfigManager manager)
229: {
230: PropertyMapCollection propertyMapping = manager.GetDataSource().PropertyMapping;
231: if (propXml.SelectSingleNode("ImportMapping") != null && propXml.SelectSingleNode("ImportMapping").ChildNodes.Count > 0)
232: {
233: PropertyMap map = propertyMapping[prop.Name];
234:
235: string dsPropName = propXml.SelectSingleNode("ImportMapping/DSPropName").InnerText;
236: string connectionName = propXml.SelectSingleNode("ImportMapping/ConnectionName").InnerText;
237: string associationName = propXml.SelectSingleNode("ImportMapping/AssociationName").InnerText;
238:
239: // Remove any mappings that are assigned to the current mapping.
240: if (!string.IsNullOrEmpty(dsPropName))
241: {
242: foreach (PropertyMap tempMap in propertyMapping)
243: {
244: if (tempMap.DSPropName == dsPropName &&
245: tempMap.ConnectionName == connectionName &&
246: tempMap.AssociationName == associationName &&
247: tempMap.PropName != prop.Name)
248: {
249: Log("Progress: Removing mapping associated with '{0}' so that it may be assigned to '{1}'.",
250: tempMap.PropName, prop.Name);
251: propertyMapping.Remove(tempMap.PropName);
252: propertyMapping = manager.GetDataSource().PropertyMapping;
253: break;
254: }
255: }
256: }
257:
258: if (map == null)
259: {
260: Log("Progress: Adding import mapping to '{0}'.", prop.Name);
261: propertyMapping.Add(prop.Name, dsPropName, connectionName, associationName);
262: }
263: else
264: {
265: Log("Progress: Updating import mapping for '{0}'.", prop.Name);
266: if (map.DSPropName != dsPropName)
267: map.DSPropName = dsPropName;
268:
269: if (map.ConnectionName != connectionName)
270: map.ConnectionName = connectionName;
271:
272: if (map.AssociationName != associationName)
273: map.AssociationName = associationName;
274:
275: map.Commit();
276: }
277: }
278: else if (propertyMapping[prop.Name] != null)
279: {
280: Log("Progress: Removing import mapping for '{0}'.", prop.Name);
281: propertyMapping.Remove(prop.Name);
282: }
283: }
So I mentioned that there was one caveat that I discovered - turns out that it's more of a bug. If you do an export and then immediately import using this command you will likely get an exception when it comes to importing the SPS-ProxyAddresses field. Here's the specific exception you will see:
Progress: Setting properties for 'SPS-ProxyAddresses'. Progress: Updating import mapping for 'SPS-ProxyAddresses'. ERROR: The character length specified is invalid. at Microsoft.Office.Server.UserProfiles.Property._TypeValidate(DBAction action) at Microsoft.Office.Server.UserProfiles.Property._TypeValidate(IEnumerable enumAddPropertyList, IEnumerable enumUpdatePropertyList) at Microsoft.Office.Server.UserProfiles.Property._Update(SRPSite site, IEnumerable enumAddPropertyList, IEnumerable enumUpdatePropertyList, IEnumerable enumRemovePropertyList) at Microsoft.Office.Server.UserProfiles.Property.Commit() at Lapointe.SharePoint.STSADM.Commands.UserProfiles.ImportProfileProperties.Execute(String command, StringDictionary keyValues, String& output) |
So what's the deal with this? Simple - it's a bug. Here's another way you can expose the bug - via the browser go to your user profile properties page and then click to edit the SPS-ProxyAddresses field. Then, on the edit screen, simply click the "OK" button without making any changes - you'll get the following error:
The problem is that this particular field is a multi-value field which can only have a maximum length of 400 but the field length is set to 2048 and because it's a built-in system field we can't change the length to fix it and therefore we can't change anything about the property.
So, to deal with this I made it so that my code simply dumps out errors like this and moves on to the next item - but you will see this error every time you attempt an import - there's no way around it (you can't change the length of an existing field so you can't fix the problem to prevent the error).
The help for the command is shown below:
C:\>stsadm -help gl-importprofileproperties
stsadm -o gl-importprofileproperties
Imports user profile properties using the output of gl-enumprofileproperties.
Parameters:
-inputfile <file to import results from>
[-sspname <name of the SSP>]
[-removemissing (removes properties missing from the import)
|
The following table summarizes the command and its various parameters:
| Command Name | Availability | Build Date |
|---|---|---|
| gl-importprofileproperties | MOSS 2007 | Released: 8/14/2008
Updated: 8/22/2008 |
| Parameter Name | Short Form | Required | Description | Example Usage |
|---|---|---|---|---|
| sspname | ssp | No | The name of the SSP that the profile properties are associated with. If omitted the default SSP will be used. | -sspname SSP1
-ssp SSP1 |
| inputfile | input | Yes | The path to the XML file to use for import. The XML must correspond to the XML generated by the gl-enumprofileproperties command. | -inputfile c:\properties.xml
-input c:\properties.xml |
| removemissing | rm | No | Deletes any properties that were not defined in the import file. It's recommended that if you use this flag that you first backup the existing properties using the gl-enumprofileproperties command. | -removemissing
-rm |
The following is an example of how to import user profile properties:
stsadm -o gl-importprofileproperties -inputfile c:\properties.xml
Update 8/22/2008: I fixed a few bugs that were preventing the importing of new properties. I also fixed it so that data mappings can be reassigned without having to run multiple times. I also added support for setting the display order and for removing properties that do not exist in the import by passing in the -removemissing parameter.
